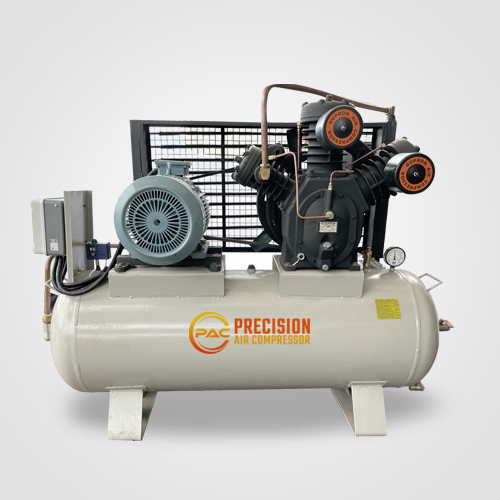

FULLY AIR COOL HIGH PRESSURE AIR COMPRESSOR breathing air compressors and services in india. FULLY AIR COOL HIGH PRESSURE AIR COMPRESSOR pressure more and more air into a storage space tank, increasing the pressure. When tank force reaches its upper limit the air compressor shuts off. The power contained in the compacted air can be applied for a range of applications.
| Model | Cylinders Size x Stroke |
Motor Hp | RPM | PD CFM |
FAD CFM |
Maximum psig |
Pressure kg/cm2 |
Air Receiver (ltrs.) |
|---|---|---|---|---|---|---|---|---|
| PAC-731 | 3"&1.25'x2.75" | 3 | 600 | 7.40 | 4.80 | 500 | 35.15 | 150 |
| PAC-731 | 3'&1"x4” | 5 | 800 | 13.1 | 4.31 | 1000 | 70.30 | 200/300 |
| PAC-707T2 | 5"&2"x4" | 12.5 | 800 | 36.37 | 21.60 | 500 | 35.15 | 300/500 |
| PAC-715T2 | 5.5"&3"&1.625"x4" | 15 | 750 | 41.26 | 31.41 | 500 | 35.15 | 500 |
| PAC-715T2 | 5.5"&3"&1.625"x4" | 20 | 900 | 49.51 | 37.70 | 640 | 45 | 500 |
| PAC-715TH | 5"&5"&3"x4" | 15 | 700 | 64 | 37 | 358 | 25.19 | 300/500 |
| PAC-715TH | 5"&5"&3"x4" | 20 | 800 | 78 | 54 | 358 | 25.19 | 300/500 |
| PAC-725TH | 5.5"&5.5"&3.5"x4" | 25 | 800 | 88 | 74 | 358 | 25.19 | 300/500 |
| 715T2 Duplex | 5.5"x3x1.625"x4" | 20x20 | 900 | 99.02 | 75 | 640 | 45 | 500 |
| 715TH Duplex | 5"x5"x3"x4" | 20x20 | 800 | 156 | 108 | 358 | 25.19 | 500 |
